HTML Hali
<!DOCTYPE html>
<html lang="tr">
<head>
<meta charset="UTF-8" />

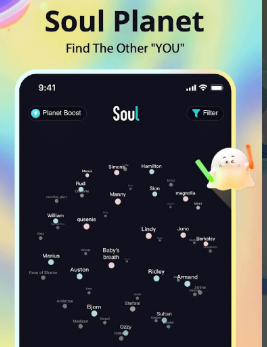

<title>3D Soul Planet</title>
<style>
body {
margin: 0;
background-color: black;
touch-action: none;
}
canvas {
display: block;
}
</style>
</head>
<body>
<script type="module">
import * as THREE from 'https://cdn.jsdelivr.net/npm/three@0.169.0/build/three.module.js'
const scene = new THREE.Scene()
const camera = new THREE.PerspectiveCamera(
75,
window.innerWidth / window.innerHeight,
0.1,
1000
)
camera.position.set(0, 0, 14)
camera.lookAt(0, 0, 0)
const renderer = new THREE.WebGLRenderer({ antialias: true, alpha: true })
renderer.setSize(window.innerWidth, window.innerHeight)
renderer.setPixelRatio(window.devicePixelRatio)
renderer.setClearColor(0x000000, 0)
document.body.appendChild(renderer.domElement)
const sphereGeometry = new THREE.SphereGeometry(4.85, 16, 16)
const sphereMaterial = new THREE.ShaderMaterial({
uniforms: {
color: { value: new THREE.Color(0x000000) },
opacity: { value: 0.8 },
},
vertexShader: `
varying vec3 vNormal;
void main() {
vNormal = normalize(normalMatrix * normal);
gl_Position = projectionMatrix * modelViewMatrix * vec4(position,1.0);
}
`,
fragmentShader: `
uniform vec3 color;
uniform float opacity;
varying vec3 vNormal;
void main() {
float alpha = opacity * smoothstep(0.5, 1.0, vNormal.z);
gl_FragColor = vec4(color, alpha);
}
`,
transparent: true,
side: THREE.FrontSide,
depthWrite: false,
})
const sphere = new THREE.Mesh(sphereGeometry, sphereMaterial)
scene.add(sphere)
const smallBallGeometry = new THREE.SphereGeometry(0.15, 16, 16)
const smallBalls = []
const labelSprites = []
const radius = 5
const numPoints = 88
const goldenRatio = (1 + Math.sqrt(5)) / 2
const maxWidth = 160
const textSpeed = 0.002
const raycaster = new THREE.Raycaster()
const mouse = new THREE.Vector2()
function createTextTexture(text, parameters = {}) {
const {
fontSize = 24,
fontFace = 'PingFang SC, Microsoft YaHei, Noto Sans, Arial, sans-serif',
textColor = 'white',
backgroundColor = 'rgba(0,0,0,0)',
maxWidth = 160,
} = parameters
const canvas = document.createElement('canvas')
const context = canvas.getContext('2d')
context.font = `${fontSize}px ${fontFace}`
const textMetrics = context.measureText(text)
const textWidth = Math.ceil(textMetrics.width)
const textHeight = fontSize * 1.2
const needMarquee = textWidth > maxWidth
let canvasWidth = maxWidth
if (needMarquee) {
canvasWidth = textWidth + 60
}
canvas.width = canvasWidth
canvas.height = textHeight
context.font = `${fontSize}px ${fontFace}`
context.clearRect(0, 0, canvas.width, canvas.height)
context.fillStyle = backgroundColor
context.fillRect(0, 0, canvas.width, canvas.height)
context.fillStyle = textColor
context.textAlign = needMarquee ? 'left' : 'center'
context.textBaseline = 'middle'
if (needMarquee) {
context.fillText(text, 0, canvas.height / 2)
} else {
context.fillText(text, maxWidth / 2, canvas.height / 2)
}
const texture = new THREE.CanvasTexture(canvas)
texture.needsUpdate = true
if (needMarquee) {
texture.wrapS = THREE.RepeatWrapping
texture.wrapT = THREE.ClampToEdgeWrapping
texture.repeat.x = maxWidth / canvas.width
} else {
texture.wrapS = THREE.ClampToEdgeWrapping
texture.wrapT = THREE.ClampToEdgeWrapping
}
texture.minFilter = THREE.LinearFilter
texture.magFilter = THREE.LinearFilter
texture.generateMipmaps = false
return { texture, needMarquee, HWRate: textHeight / maxWidth }
}
for (let i = 0; i < numPoints; i++) {
const y = 1 - (i / (numPoints - 1)) * 2
const radiusAtY = Math.sqrt(1 - y * y)
const theta = (2 * Math.PI * i) / goldenRatio
const x = Math.cos(theta) * radiusAtY
const z = Math.sin(theta) * radiusAtY
const smallBallMaterial = new THREE.MeshBasicMaterial({
color: getRandomBrightColor(),
depthWrite: true,
depthTest: true,
side: THREE.FrontSide,
})
const smallBall = new THREE.Mesh(smallBallGeometry, smallBallMaterial)
smallBall.position.set(x * radius, y * radius, z * radius)
sphere.add(smallBall)
smallBalls.push(smallBall)
const labelText = getRandomNickname()
const { texture, needMarquee, HWRate } = createTextTexture(labelText, {
fontSize: 28,
fontFace: 'PingFang SC, Microsoft YaHei, Noto Sans, Arial, sans-serif',
textColor: '#bbbbbb',
maxWidth: maxWidth,
})
const spriteMaterial = new THREE.SpriteMaterial({
map: texture,
transparent: true,
depthWrite: true,
depthTest: true,
blending: THREE.NormalBlending,
})
const sprite = new THREE.Sprite(spriteMaterial)
sprite.scale.set(1, HWRate, 1)
labelSprites.push({ sprite, smallBall, texture, needMarquee, labelText })
scene.add(sprite)
}
const light = new THREE.AmbientLight(0xffffff, 0.5)
scene.add(light)
const directionalLight = new THREE.DirectionalLight(0xffffff, 1)
directionalLight.position.set(5, 5, 5)
scene.add(directionalLight)
const autoRotationSpeed = 0.0005
let autoRotationAxis = new THREE.Vector3(0, 1, 0).normalize()
let currentAngularVelocity = autoRotationAxis.clone().multiplyScalar(autoRotationSpeed)
let isDragging = false
let previousMousePosition = { x: 0, y: 0 }
let lastDragDelta = { x: 0, y: 0 }
const decayRate = 0.92
const increaseRate = 1.02
const onMouseDown = (event) => {
isDragging = true
previousMousePosition = {
x: event.clientX,
y: event.clientY,
}
}
const onMouseMove = (event) => {
if (isDragging) {
const deltaX = event.clientX - previousMousePosition.x
const deltaY = event.clientY - previousMousePosition.y
lastDragDelta = { x: deltaX, y: deltaY }
const rotationFactor = 0.005
const angleY = deltaX * rotationFactor
const angleX = deltaY * rotationFactor
const quaternionY = new THREE.Quaternion().setFromAxisAngle(
new THREE.Vector3(0, 1, 0),
angleY
)
const quaternionX = new THREE.Quaternion().setFromAxisAngle(
new THREE.Vector3(1, 0, 0),
angleX
)
const deltaQuat = new THREE.Quaternion().multiplyQuaternions(quaternionY, quaternionX)
sphere.quaternion.multiplyQuaternions(deltaQuat, sphere.quaternion)
const dragRotationAxis = new THREE.Vector3(deltaY, deltaX, 0).normalize()
const dragRotationSpeed = Math.sqrt(deltaX * deltaX + deltaY * deltaY) * rotationFactor
if (dragRotationAxis.length() > 0) {
currentAngularVelocity.copy(dragRotationAxis).multiplyScalar(dragRotationSpeed)
}
previousMousePosition = {
x: event.clientX,
y: event.clientY,
}
}
}
const onMouseUp = () => {
if (isDragging) {
isDragging = false
const deltaX = lastDragDelta.x
const deltaY = lastDragDelta.y
if (deltaX !== 0 || deltaY !== 0) {
const newAxis = new THREE.Vector3(deltaY, deltaX, 0).normalize()
if (newAxis.length() > 0) {
autoRotationAxis.copy(newAxis)
}
const dragSpeed = currentAngularVelocity.length()
if (dragSpeed > autoRotationSpeed) {
} else {
currentAngularVelocity.copy(autoRotationAxis).multiplyScalar(autoRotationSpeed)
}
}
}
}
const onTouchStart = (event) => {
isDragging = true
const touch = event.touches[0]
previousMousePosition = {
x: touch.clientX,
y: touch.clientY,
}
}
const onTouchMove = (event) => {
event.preventDefault()
if (isDragging) {
const touch = event.touches[0]
const deltaX = touch.clientX - previousMousePosition.x
const deltaY = touch.clientY - previousMousePosition.y
lastDragDelta = { x: deltaX, y: deltaY }
const rotationFactor = 0.002
const angleY = deltaX * rotationFactor
const angleX = deltaY * rotationFactor
const quaternionY = new THREE.Quaternion().setFromAxisAngle(
new THREE.Vector3(0, 1, 0),
angleY
)
const quaternionX = new THREE.Quaternion().setFromAxisAngle(
new THREE.Vector3(1, 0, 0),
angleX
)
const deltaQuat = new THREE.Quaternion().multiplyQuaternions(quaternionY, quaternionX)
sphere.quaternion.multiplyQuaternions(deltaQuat, sphere.quaternion)
const dragRotationAxis = new THREE.Vector3(deltaY, deltaX, 0).normalize()
const dragRotationSpeed = Math.sqrt(deltaX * deltaX + deltaY * deltaY) * rotationFactor
if (dragRotationAxis.length() > 0) {
currentAngularVelocity.copy(dragRotationAxis).multiplyScalar(dragRotationSpeed)
}
previousMousePosition = {
x: touch.clientX,
y: touch.clientY,
}
}
}
const onTouchEnd = (event) => {
if (isDragging) {
isDragging = false
const deltaX = lastDragDelta.x
const deltaY = lastDragDelta.y
if (deltaX !== 0 || deltaY !== 0) {
const newAxis = new THREE.Vector3(deltaY, deltaX, 0).normalize()
if (newAxis.length() > 0) {
autoRotationAxis.copy(newAxis)
}
const dragSpeed = currentAngularVelocity.length()
if (dragSpeed > autoRotationSpeed) {
} else {
currentAngularVelocity.copy(autoRotationAxis).multiplyScalar(autoRotationSpeed)
}
}
}
if (event.changedTouches.length > 0) {
const touch = event.changedTouches[0]
mouse.x = (touch.clientX / window.innerWidth) * 2 - 1
mouse.y = -(touch.clientY / window.innerHeight) * 2 + 1
checkIntersection()
}
}
window.addEventListener('mousedown', onMouseDown)
window.addEventListener('mousemove', onMouseMove)
window.addEventListener('mouseup', onMouseUp)
window.addEventListener('touchstart', onTouchStart)
window.addEventListener('touchmove', onTouchMove)
window.addEventListener('touchend', onTouchEnd)
document.addEventListener('gesturestart', function (e) {
e.preventDefault()
})
window.addEventListener('click', onMouseClick)
window.addEventListener('resize', () => {
camera.aspect = window.innerWidth / window.innerHeight
camera.updateProjectionMatrix()
renderer.setSize(window.innerWidth, window.innerHeight)
})
function onMouseClick(event) {
event.preventDefault()
mouse.x = (event.clientX / window.innerWidth) * 2 - 1
mouse.y = -(event.clientY / window.innerHeight) * 2 + 1
console.log(event.clientX, mouse.x, mouse.y)
checkIntersection()
}
function checkIntersection() {
raycaster.setFromCamera(mouse, camera)
const intersects = raycaster.intersectObjects(smallBalls)
if (intersects.length > 0) {
const intersectedBall = intersects[0].object
const index = smallBalls.indexOf(intersectedBall)
if (index !== -1) {
const labelInfo = labelSprites[index]
showLabelInfo(labelInfo)
}
}
}
function showLabelInfo(labelInfo) {

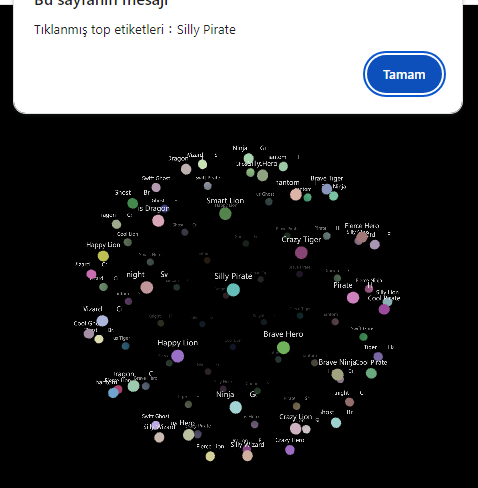

alert(`Tıklanmış top etiketleri：${labelInfo.labelText}`)
}
function animate() {
requestAnimationFrame(animate)
if (!isDragging) {
const deltaQuat = new THREE.Quaternion().setFromEuler(
new THREE.Euler(
currentAngularVelocity.x,
currentAngularVelocity.y,
currentAngularVelocity.z,
'XYZ'
)
)
sphere.quaternion.multiplyQuaternions(deltaQuat, sphere.quaternion)
const currentSpeed = currentAngularVelocity.length()
if (currentSpeed > autoRotationSpeed) {
currentAngularVelocity.multiplyScalar(decayRate)
if (currentAngularVelocity.length() < autoRotationSpeed) {
currentAngularVelocity.copy(autoRotationAxis).multiplyScalar(autoRotationSpeed)
}
} else if (currentSpeed < autoRotationSpeed) {
currentAngularVelocity.multiplyScalar(increaseRate)
if (currentAngularVelocity.length() > autoRotationSpeed) {
currentAngularVelocity.copy(autoRotationAxis).multiplyScalar(autoRotationSpeed)
}
} else {
currentAngularVelocity.copy(autoRotationAxis).multiplyScalar(autoRotationSpeed)
}
}
labelSprites.forEach(({ sprite, smallBall, texture, needMarquee }) => {
smallBall.updateMatrixWorld()
const smallBallWorldPos = new THREE.Vector3()
smallBall.getWorldPosition(smallBallWorldPos)
const upOffset = new THREE.Vector3(0, 0.3, 0)
sprite.position.copy(smallBallWorldPos).add(upOffset)
if (needMarquee) {
texture.offset.x += textSpeed
if (texture.offset.x > 1) {
texture.offset.x = 0
}
}
})
renderer.render(scene, camera)
}
animate()
function getRandomBrightColor() {
const hue = Math.floor(Math.random() * 360)
const saturation = Math.floor(Math.random() * 40 + 10)
const lightness = Math.floor(Math.random() * 40 + 40)
const rgb = hslToRgb(hue, saturation, lightness)
return (rgb.r << 16) | (rgb.g << 8) | rgb.b
}
function hslToRgb(h, s, l) {
s /= 100
l /= 100
const c = (1 - Math.abs(2 * l - 1)) * s
const x = c * (1 - Math.abs(((h / 60) % 2) - 1))
const m = l - c / 2
let r, g, b
if (h >= 0 && h < 60) {
r = c
g = x
b = 0
} else if (h >= 60 && h < 120) {
r = x
g = c
b = 0
} else if (h >= 120 && h < 180) {
r = 0
g = c
b = x
} else if (h >= 180 && h < 240) {
r = 0
g = x
b = c
} else if (h >= 240 && h < 300) {
r = x
g = 0
b = c
} else {
r = c
g = 0
b = x
}
return {
r: Math.round((r + m) * 255),
g: Math.round((g + m) * 255),
b: Math.round((b + m) * 255),
}
}
function getRandomNickname() {
const adjectives = [
'Cool',
'Crazy',
'Mysterious',
'Happy',
'Silly',
'Brave',
'Smart',
'Swift',
'Fierce',
'Gentle',
]
const nouns = [
'Tiger',
'Lion',
'Dragon',
'Wizard',
'Ninja',
'Pirate',
'Hero',
'Ghost',
'Phantom',
'Knight',
]
const randomAdjective = adjectives[Math.floor(Math.random() * adjectives.length)]
const randomNoun = nouns[Math.floor(Math.random() * nouns.length)]
const nickname = `${randomAdjective} ${randomNoun}`
if (nickname.length < 2) {
return getRandomNickname()
} else if (nickname.length > 22) {
return nickname.slice(0, 22)
}
return nickname
}
</script>
</body>
</html>
