Bilgisayar Donanımdan Anlayan Bakabilir mi Arkadaşlar?

Question

Selam arkadaşlar, Bu linkteki ürün mevcut elimizde. 4 GB ram takılı ancak yükseltmek istiyoruz. Hangi rami alacağımı bulamadım.

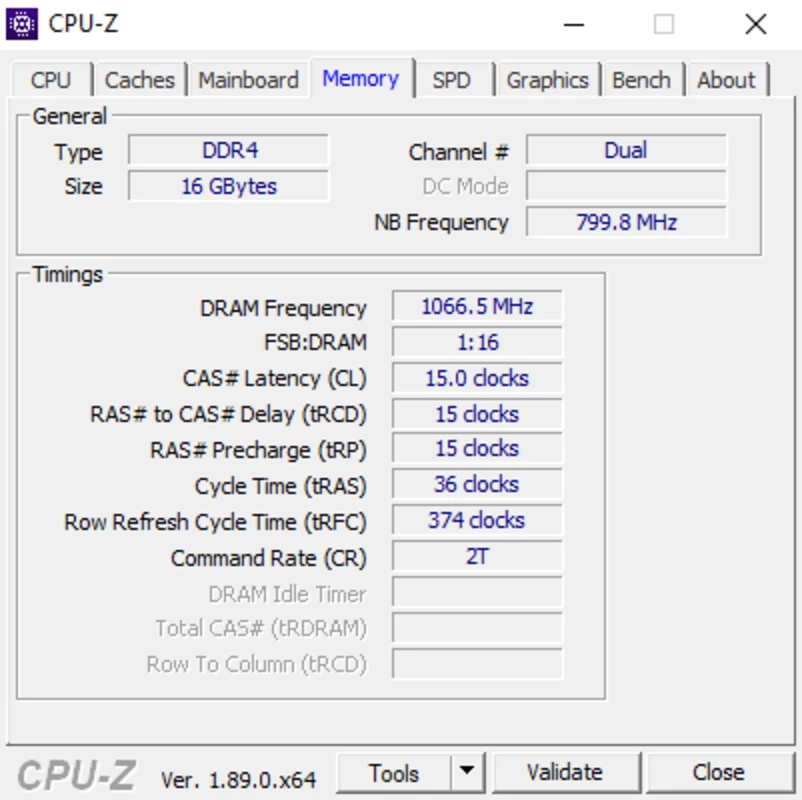

Donanım gösteren uygulama da ram aşağıdaki resimde ki Rami gösteriyor ama hangi rami alacağımı tam olarak bulamadım. 8 GB ram işimi görür. Yardımcı olacak arkadaşlara şimdiden teşekkür ederim.

CPUZ böyle bir rapor vermiş bu arada arkadaşlar,
